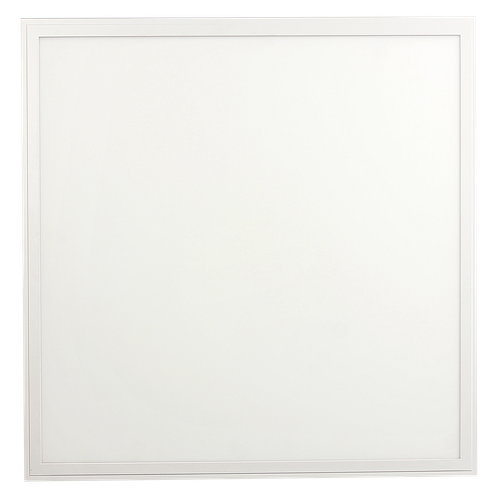

Office LED Panel 32W 3000K 4000Lm 595x595x9mm GEN2 THORGEON

47,34 incl. VAT
Only1910 item(s)left in stock!

1910 in stock

Image Safe Checkout
Guaranteed Safe Checkout
SKU: 4751029891891 Categories: , Tag:

Technical Information

Item conditionNew
Manufacture nameOffice LED Panel 32W 3000K 4000Lm 595x595x9mm GEN2 THORGEON
BrandTHORGEON
CategoriesLED Panels
Country of originCN
Harmonized System Code9405 1190 00
Energy ClassF
EPREL – European Product Registry for Energy Labelling941083
Width595 mm
Colour housingWhite
Colour rendering index CRI80-89
Length595 mm
Height/depth9 mm
Lamp typeLED not exchangeable
Impact strengthIK05
Nominal voltage220-240 V
Degree of protection (IP)IP20
Beam angleExtreme wide beam >80°
Colour temperature3000 K
Max. system power32 W
Rated luminous flux according to IEC 62722-2-14000 lm
Luminaire efficacy125 lm/W
Packing details
Packing level 14751029891891
Packing level 24751029898944
Packing level 34751029891891
Other Technical data
Protection classII
Lamp holderOther
Conductor cross section0.75 mm²
Connection typePlug
Voltage typeDC
With movement sensorNo
Suitable for lamp power28-36 W
Type of gridNone
Type of control gearNot required
Built-in width0 mm
With light sensorNo
Suitable for suspended mountingYes
Housing materialAluminium
Built-in length595 mm
Suitable for light line configurationYes
Suitable for emergency lightingNo
Light outletDirect
Light sharingSymmetric
Material coverWithout cover
Emergency power supply integratedNo
With light sourceYes
Luminaire with limited surface temperature, sign “D“ according to EN 60598-2-24No
Covering of the luminaire with thermally insulating material possibleNo
Suitable for number of lamps1
Suitable for wall mountingNo
Suitable for built-in mountingYes
With control gearNo
Suitable for workplace according to EN 12464-1Yes
Suitable for surface mountingYes
Nominal current600 mA
Colour of lightWhite
With air slotsNo
Constant light output (CLO)Yes
IFTTT support availableNo
Type of wiringSuitable for through wiring
Rated life time L70/B50 at 25 °C50000 h
Colour consistency (McAdam ellipse)SDCM6
Total harmonic distortion15
Photobiological safety according to EN 62471RG2
Degree of protection (NEMA)2
Rated ambient temperature according to IEC62722-2-155-105 °C
Filament test according to IEC 60695-2-11850 °C – 30 s
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming potentiometer (integrated)No
Dimming GPRSNo
Dimming LineSwitchNo
Dimming manufacturer’s proprietary systemNo
Dimming mains voltage modulationNo
Dimming phase cut-offNo
Dimming phase cut-onNo
Dimming programmableNo
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming with push-buttonNo
No dim functionYes
Light distributorDiffuser lens/optic/panel
Dimming depending on control gearNo
Dimming DSINo
Energy efficiency class of the built-in lampA++, A+, A (LED)
Energy efficiency class of the provided exchangeable built-in lampA++
Highest energy efficiency class of the exchangeable lampA++
Lowest energy efficiency class of the exchangeable lampE
Unified Glare Ratio (UGR)22
Operation by BluetoothNo
Compatible with Apple HomeKitNo
Compatible with Google AssistantNo
Compatible with Amazon AlexaNo
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq)99.04 %
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)98.46 %
Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq)97.36 %
Dimming DALI-2No
Colour temperature adjustableNo
Luminous flux adjustableNo
Beam angle adjustableNo
Exchangeable control gearNo
Suitable for ceiling mountingYes
Built-in height/depth595 mm
Surface protection housingLacquered
Power factor0.9
Flicker FreeYes
Downloads

Instructions for use

Energy label

Product data sheet
