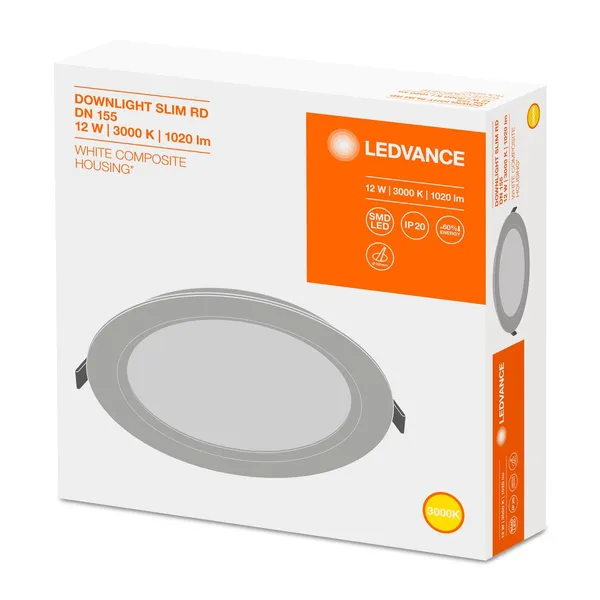

DOWNLIGHT SLIM ROUND 155 12 W 3000 K WT
€10.50 excl. VAT
Flat downlights with integrated driver, round shape. Product features: Small visible bezel. Connector box with push wire terminal for tool-free connection. Light guide made of non-yellowing PMMA for long lifetime. Product benefits: Very slim housing. Low installation depth. High luminous efficacy. Energy savings up to 60 % (compared to luminaires that use CFL lamps). Very homogenous light. Functional design. Easy installation with fast connection. Simple installation thanks to integrated driver. Areas of application: Direct replacement for luminaires with compact fluorescent lamps. General illumination. Public areas. Stairways. Corridors. Foyers. Shops. Equipment / Accessories: Surface mounting frames available as accessories.
Only128 item(s)left in stock!
128 in stock
Guaranteed Safe Checkout
- Delivers in: 3-7 Working Days Shipping & Return
Technical Information
| Item condition | New |
| Manufacture name | DOWNLIGHT SLIM ROUND 155 12 W 3000 K WT |
| Brand | LEDVANCE |
| Categories | Recessed lights Wall mounting lamps |
| Country of origin | CN |
| Harmonized System Code | 9405 1140 00 |
| Width | 155 mm |
| Colour rendering index CRI | 80-89 |
| Length | 155 mm |
| Height/depth | 30 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK03 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP20 |
| Beam angle | Extreme wide beam >80° |
| Colour temperature | 3000 K |
| Max. system power | 12 W |
| Rated luminous flux according to IEC 62722-2-1 | 1020 lm |
| Luminaire efficacy | 85 lm/W |
Packing details
| Packing level 1 | 4058075079038 |
| Packing level 2 | 4058075079045 |
| Packing level 3 | 4058075079038 |
Other Technical data
| Protection class | II |
| Outer diameter | 169 mm |
| Reflector | None |
| Lamp holder | None |
| Connection type | Push-in clamp |
| Colour housing | White |
| Surface protection | Untreated |
| Voltage type | AC |
| With movement sensor | No |
| Suitable for lamp power | 12 W |
| Type of control gear | LED operating device current-controlled |
| Suitable for wall mounting | Yes |
| Energy efficiency class | A++ |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Number of poles | 2 |
| Housing material | Plastic |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Plastic, opal |
| Emergency power supply integrated | No |
| With light source | Yes |
| Luminaire with limited surface temperature, sign “D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for number of lamps | 0 |
| Suitable for built-in mounting | Yes |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | Yes |
| Surface brushed | No |
| Colour of light | White |
| Adjustability | Not adjustable |
| Suitable for traverse mounting | No |
| Suitable for pedestal/floor mounting | No |
| Suitable for light-track mounting | No |
| Suitable for clamp-mounting | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Luminous flux | 1020 lm |
| Type of wiring | Ending |
| Rated life time L70/B50 at 25 °C | 30000 h |
| Rated life time L80/B10 at 25 °C | 20000 h |
| Colour consistency (McAdam ellipse) | SDCM6 |
| Total harmonic distortion | 20 |
| Photobiological safety according to EN 62471 | RG0 |
| Rated ambient temperature according to IEC62722-2-1 | -20-50 °C |
| Filament test according to IEC 60695-2-11 | 650 °C – 30 s |
| LED nominal current at constant current | 71.7 mA |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer’s proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Light distributor | Diffuser lens/optic/panel |
| Dimming depending on control gear | No |
| Suitable for low voltage cable system | No |
| Dimming DSI | No |
| Energy efficiency class of the built-in lamp | A++, A+, A (LED) |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Dimming DALI-2 | No |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | Positions |
| Exchangeable control gear | Yes |
| Built-in diameter | 155 mm |
| Suitable for ceiling mounting | Yes |
| Built-in height/depth | 50 mm |
| Power factor | 0.5 |
