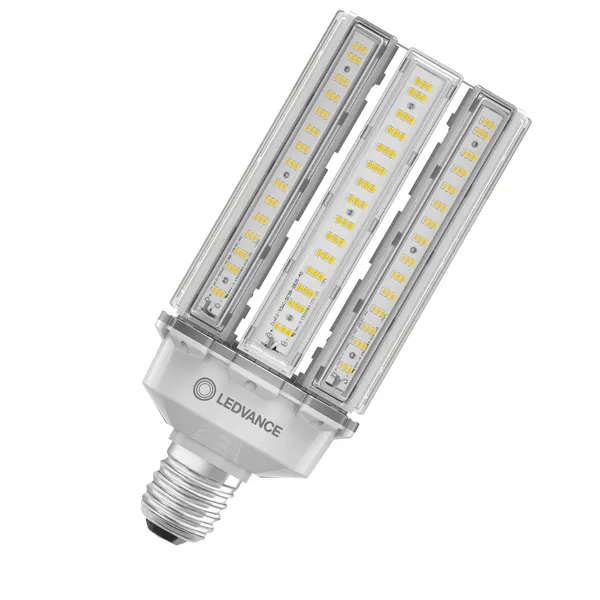

HQL LED P 13000LM 90W 840 E40
LED replacement for HQL lamps in demanding outdoor applications. Product features: Replacement for HQL: Suitable for operation with conventional control gear (CCG) for HQL or 230 V mains. Replacement for other HID: Suitable for operation with line voltage without control gear. Power factor: 0.9. Type of protection: IP65. High surge protection: up to 6 kV (L-N). Product benefits: Saves up to 78 % energy when used as replacement for mercury vapor lamps (HQL). Low maintenance costs thanks to long lifetime. Instant 100 % light, no warm-up time. Areas of application: Streets. Area lighting. Pedestrian zones. Parks. Outdoor applications only in suitable luminaires.
Out of stock
- Delivers in: 3-7 Working Days Shipping & Return
Technical Information
| Item condition | New |
| Manufacture name | HQL LED P 13000LM 90W 840 E40 |
| Brand | LEDVANCE |
| Categories | LED Gas Discharge Lamps |
| Country of origin | CN |
| Harmonized System Code | 8539 5200 00 |
| Energy Class | D |
| EPREL – European Product Registry for Energy Labelling | 1157796 |
| Socket | E40 |
| Colour rendering index CRI | 80-89 |
| Diameter | 110 mm |
| Lamp efficacy | 144 lm/W |
| Lamp shape | Other |
| Length | 270 mm |
| Nominal voltage | 220 V |
| Type of cover | Clear |
| Colour temperature | 4000 K |
| Lamp power | 90 W |
| Luminous flux | 806 lm |
| Filament lamp | No |
| Beam angle | 360 ° |
Packing details
| Packing level 1 | 4099854040825 |
| Packing level 2 | 4099854040832 |
| Packing level 3 | 4099854040825 |
Other Technical data
| Colour housing | Grey |
| Voltage type | AC |
| With remote control | No |
| Suitable for electronic ballast | No |
| Remote operation possible | No |
| Degree of protection (IP) | IP65 |
| Colour of light according to EN 12464-1 | Neutral white 3300-5300 K |
| Average nominal lifespan | 60000 h |
| Nominal current | 410 mA |
| Weighted energy consumption in 1000 hours | 90 kWh |
| IFTTT support available | Yes |
| Colour consistency (McAdam ellipse) | SDCM6 |
| Total harmonic distortion | 20 |
| Photobiological safety according to EN 62471 | RG1 |
| Min. number of switching cycles | 100000 |
| Rated luminous flux according to IEC 62612 | 13000 lm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Suitable for magnetic ballast | Yes |
| Energy efficiency class according to EU regulation 2019/2015 | D |
| Power factor | 0.9 |
Downloads
Others Product data sheet Product data sheet for energy label Instructions for use Declaration DOC CE (Declaration of conformity CE)
