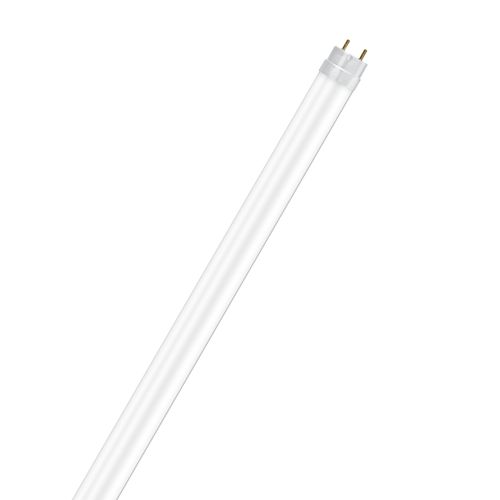

SubstiTUBE T8 EM VALUE 18.3 W/6500 K 1500 mm

4,77 incl. VAT

Economic LED tubes for electromagnetic control gears (CCG). Product features: LED replacement for classic T8 fluorescent lamps with G13 socket for use in CCG luminaires or on AC mains. Low flicker according to EU 2019-2020 (SVM ≤0,4 / PstLM ≤ 1). Single and tandem operation on conventional control gear (0.6 m version). Tube made of glass. Mercury-free and RoHS compliant. Uniform illumination. Type of protection: IP20. Product benefits: No bending thanks to glass tube. Energy savings of up to 68 % (compared to T8 fluorescent lamp on CCG). Quick, simple and safe replacement without rewiring. Instant-on light, therefore ideally suitable in combination with sensor technology. Very high resistance to switching loads. Also suitable for operation at low temperatures. Areas of application: General illumination within ambient temperatures from -20…+45 °C. Corridors, stairways, parking garages. Industry. Warehouses. Cooling and storage rooms. Domestic applications. Supermarkets and department stores. Equipment / Accessories: Suitable for operation with low-loss and conventional control gears.

Only670 item(s)left in stock!

670 in stock

Image Safe Checkout
Guaranteed Safe Checkout
SKU: 4058075611771 Category: Tags: , , , ,

Technical Information

Item conditionNew
Manufacture nameSubstiTUBE T8 EM VALUE 18.3 W/6500 K 1500 mm
BrandOSRAM
CategoriesT8 LED Tubes
Country of originCN
Harmonized System Code8539 5200 00
SocketG13
DimmableNo
Colour rendering index CRI80-89
Diameter26.7 mm
Lamp efficacy120 lm/W
Lamp shapeTube, double-ended
Length1513 mm
Nominal voltage220-240 V
Type of coverFrosted
Colour temperature6500 K
Lamp power18.3 W
Luminous flux2200 lm
Filament lampNo
Beam angle190 °
Packing details
Packing level 14058075611771
Packing level 24058075611788
Packing level 34058075611771
Other Technical data
ColourWhite
Voltage typeAC
With remote controlNo
Energy efficiency classE
Suitable for electronic ballastNo
Remote operation possibleNo
Degree of protection (IP)IP20
Colour of light according to EN 12464-1Daylight white >5300 K
Average nominal lifespan30000 h
Nominal current90 mA
Weighted energy consumption in 1000 hours19 kWh
IFTTT support availableNo
Colour consistency (McAdam ellipse)SDCM6
Photobiological safety according to EN 62471RG0
Lamp designationT8
Min. number of switching cycles200000
Rated luminous flux according to IEC 626122200 lm
Compatible with Apple HomeKitNo
Compatible with Google AssistantNo
Compatible with Amazon AlexaNo
Suitable for magnetic ballastYes
Energy efficiency class according to EU regulation 2019/2015E
Power factor0.9
